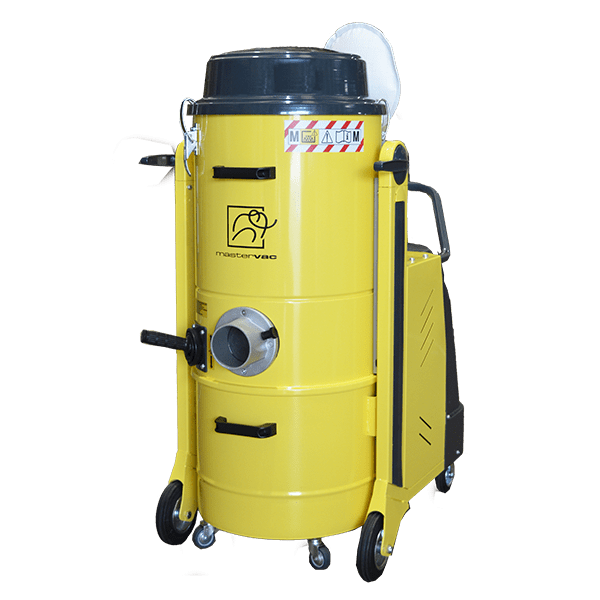

TS220 – 225

POWERFUL THREE-PHASE VACUUM CLEANER

The TS 220/225, a compact, silent industrial vacuum cleaner, is the product chosen by many companies both for direct vacuuming on board machinery and for general cleaning applications. A high-performance side channel turbine, available from 2.2 to 4 kW and requiring no maintenance, guarantees constant, continuous vacuum and the filter cleaning system via filter shaker lever always keeps outgoing dust filtration highly efficient. Also available in the ATEX-certified version.

Steel structure on wheels for convenient use
Class M antistatic large-surface filter
Side channel turbine with vacuum relief valve included

✓ Accessory kit ✓ For continuous use ✓ For dusts and solids

Request a Free Quote

Technical Features

	TS220	TS225
Voltage (V-Hz)	400-50 3~	400-50 3~
Power (kW)	2,2	4
Max waterlift (mmH₂O)	2600/1900	3200/2600
Airflow (mᶟ/h)	318	420
Capacity	45	45
ø Suction inlet (mm)	80	80
Dry primary filter	Star	Star
Media, class Dry	Polyester ANT M	Polyester ANT M
Surface, diameter Dry (cm²-mm)	20.000-420	20.000-420
load on filter (m³/m²/h)	159	210
Filter cleaning system	Manual	Manual
Noise level dB(A) (EN ISO 3744)	69	69
Dimensions (cm)	58x93x116h	58x93x116h
Weight (kg)	80	90

Download Brochures

Any questions? Please get in touch.

TS220 TS225

ABSOLUTE FILTER- M PTFE FILTER- NOMEX FILTER- ACTIVE CARBON FILTER

STAINLESS STEEL CHAMBER, CHASSIS AND CONTAINER

EARTH GROUNDING

REMOTE CONTROL

INTERNAL MIRROR POLISHING FOR FILTER CHAMBER AND CONTAINER

CONTROLLO REMOTO

ARTICULATED ARM

ANTI-SPARK SYSTEM
