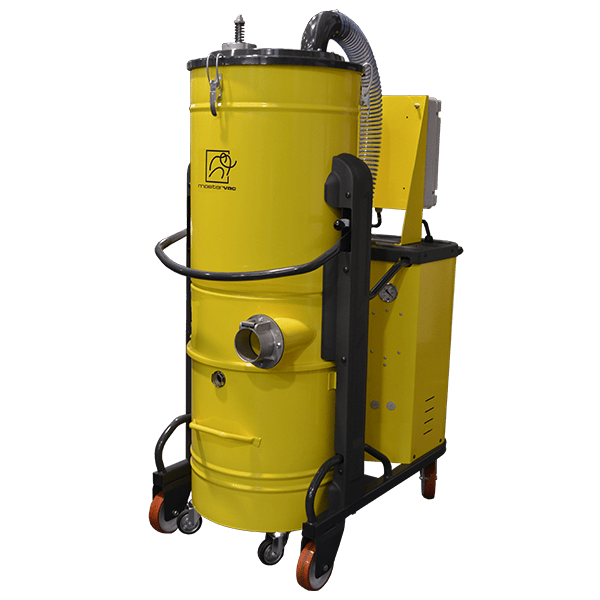

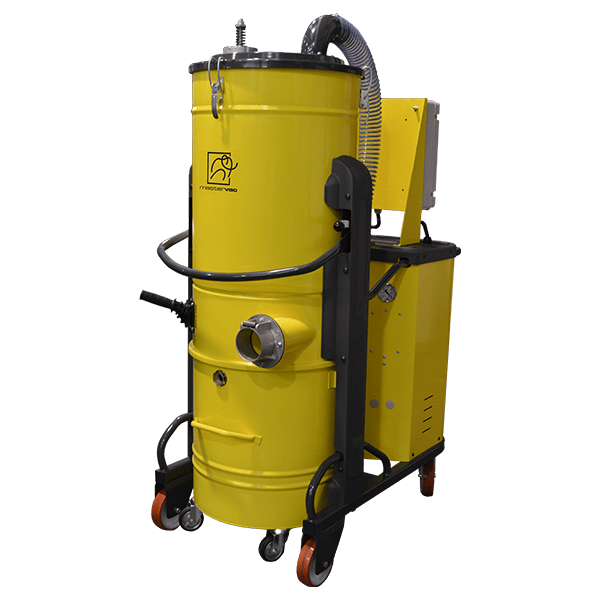

TS75
TS75PN

TS 75 – TS 75AF – TS 90

COMPACT, POWERFUL INDUSTRIAL VACUUM CLEANER FOR CONTINUOUS USE

The TS HD 75 industrial vacuum cleaner is the ideal vacuum for those who must continuously vacuum very heavy powdery and solid material. The steel structure makes it resistant to any industrial sector requiring maintenance. The class M antistatic filter can be easily cleaned via the handy filter-shaker lever or via an automatic system in the PN version. The large 100-litre collection capacity makes the TS 75 HD extremely high-performing, even when used as a vacuum unit in a centralized system.

  • 100-litre collection tank
  • Side channel turbine with vacuum relief valve installed
  • High-performing even in heavy applications

✓ For continuous use ✓ For dusts and solids ✓ Manual filter cleaning

Technical Features

TS75 TS75AF TS90 TS75AFPN TS75PN
Voltage (V-Hz) 400-50 3~ 400-50 3~ 400-50 3~ 400-50 3~ 400-50 3~
Power (kW) 7,5 7,5 7,5 7,5 7,5
Max air flow(mᶟ/h) 530 700 910 700 530
Max waterlift (mmH₂O) 4000 3200 3200 3200 4000
Continuos waterlift (mmH₂O) 3200 2700 2700 2700 3200
ø Suction inlet (mm) 80 80 80 80 80
Capacity 100 100 100 100 100
Dry primary filter Star Star Star Cartidge Cartidge
Filter Media, class Dry Polyester ANT M Polyester ANT M Polyester ANT M Polyester ANT M Polyester ANT M
Filter surface, diameter Dry (cm²-mm) 49.000-500 49.000-500 49.000-500 80.000 80.000
Load on filter (m³/m²/h) 108 143 186 88 66
Filter cleaning system Manual Manual Manual Automatic, reverse air pulse Automatic, reverse air pulse
Noise level dB(A) (EN ISO 3744) 76 76 76 74 76
Dimensions (cm) 66x118x175h 66x118x175h 66x118x175h 66x118x175h 66x118x175h
Weight (kg) 170 170 170 180 180

Download Brochures

Any questions? Please get in touch.

TS75TS75AFTS90TS75PNTS75AFPN
Filtro Assoluto

ABSOLUTE FILTER – M PTFE FILTER

STAINLESS STEEL FILTER CHAMBER AND CONTAINER

COMPRESSOR

EARTH GROUNDING

AVAILABLE WITH FORK LIFT INTAKES
