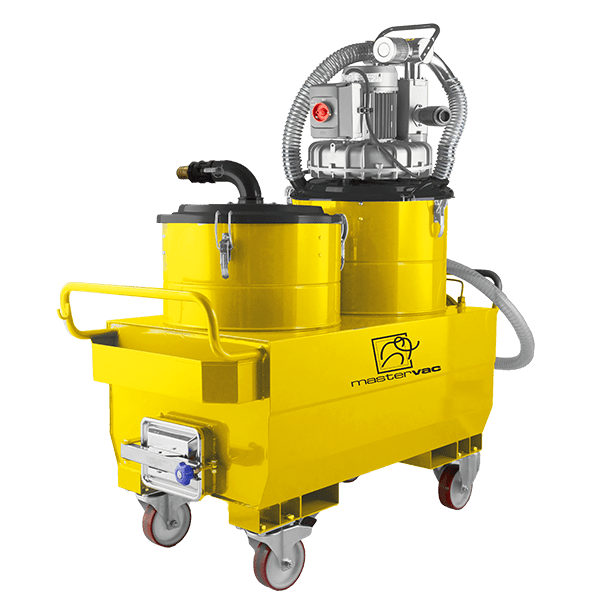

MEKA220IF

MEKA 220 IF

INDUSTRIAL VACUUM CLEANER TO SERVICE TOOL MACHINES AND CNC

The MEKA220IF vacuum cleaner is designed to vacuum oils and emulsions even mixed with chips and oily deposits created by cutting and carpentry operations. With a 220-litre liquid capacity, it is capable of working at length to remove the oils used inside CNC machines, separating them from the chips and other metal residue via the basket, which can contain up to 40 litres of material. Once filtered, the vacuumed oils can be discharged via the reverse flow system to guarantee they are used again.  The 3kW motor ensures high-level performance and is protected by the superweb 3D filter that blocks possible oil mist.

  • Floating device included to stop vacuum when the collection tank is full
  • Solid, sturdy structure on wheels for easy use
  • Discharge system alternated with vacuum

✓ Discharge pump ✓ For continuous use ✓ For oil and swarf

Technical Features

MEKA220IF
Voltage (V-Hz) 400-50 3~
Power (kW) 3
Airflow (mᶟ/h) 318
Max waterlift (mmH₂O) 3200/2700
ø Suction inlet (mm) 50
Solids capacity (l) 40
Liquids capacity (l) 220
Floating device Mechanical
Discharge system Reverse flow
Discharge flow rate (l/min) 200
Wet primary filter 3d Superweb
Wet media, filtration Polypropylene 20µ
Noise level dB(A) (EN ISO 3744) 78
Dimensions (cm) 143x67x172h
Weight (kg) 185

Download Brochures

Any questions? Please get in touch.

MEKA 220 IF
Filtro Assoluto

OIL AND WATER REPELLENT CARTRIDGE – 300 MICRON OIL FILTRATION KIT

ACCESSORY KIT
